Operation life; in normal use, the experience of a device manufacturer can reach 8 million reciprocating motion, the selection of the cable nylon drag chain, the original: the built-in cable, tubing, trachea, water pipe, etc. As a reference height, add at least 10% high space as the torch. If the overlap is used as a reference height after overlapping.
◆ Wide: Select some cable, tubing, trachea, water pipe, etc. The sum of the outer diameter and the width of the drag chain and has a width space of at least 10%.
◆ Bend radius: Select the maximum bend radius in the built-in cable, tubing, trachea, water pipe, etc., and stay 10 % Or more space. Cable drag chain built-in cable, tubing, water pipe, trachea placement
◆ There should be a 15% remaining space, allowing the built-in cable, tubing, etc. to be freely movable, and the drag chain does not cause tension in the radius direction.
◆ The wires with large diameter should be laid separately, the weight is distributed, and the separator can be separated by the separator.
◆ When running at high speed or high frequency, try to make the wires separately from each other, not to overlap, in the cable, When the trachea, tubing, etc., it is recommended to use a separator. Installation of plastic cable drag chain
◆ Use the appropriate flat screwdriver, vertically insert the open hole on both ends of the cover, open the cover, and put the cable, tubing, etc.

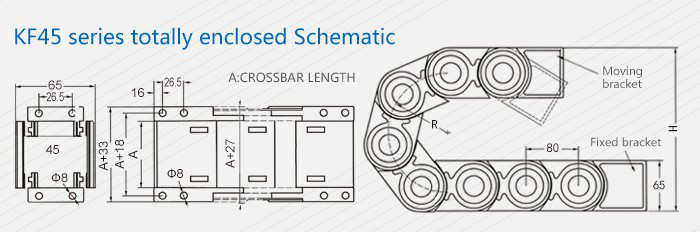

Model | Inner H×W | Outer H*W | Style | Bending Radius | Pitch | Unsupported length |
KF 45×60 | 45×60 | 65×93 | Totally enclosed Top and bottom lids can be opened | 100. 125. 150. 175. 200. 250. 300. 350 | 80 | 1.5m |
KF45x75 | 45×75 | 65×108 | ||||
KF45x100 | 45×100 | 65×126 | ||||
KF45x125 | 45×125 | 65×158 | ||||
KF 45×150 | 45×150 | 65×183 |
Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
