Uses and characteristics of energy chains How energy chains work

The reinforced plastic drag chain is suitable for use in reciprocating motions, and can pull and protect the built-in cables, oil pipes, air pipes, water pipes, etc.

Each section of the energy chain can be opened for easy installation and maintenance. Low noise, wear-resistant, and high-speed movement during exercise.

Drag chains have been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, door and window machinery, injection molding machines, manipulators, lifting and transportation equipment, automated warehouses, etc.

The structure of the energy chain

The shape of the drag chain is like a tank chain, which is composed of many unit chain links, and the chain links can rotate freely.

The inner height, outer height and pitch of the drag chain of the same series are the same, and the inner height and bending radius R of the drag chain can be selected differently.

Separators can also be provided to separate the space in the chain as needed.

Model Table

Model

Inner H×W(A)

Outer H*W

Style

Bending Radius

Pitch

Unsupported length

ZF 62×250

62×250

100×293

Totally enclosed
Top and bottom lids can be opened

150. 175. 200. 250. 300. 400
500

100

3.8m

ZF 62×300

62×300

100×343

ZF 62×100

62×100

100×143

ZF 62×150

62×150

100×193

Structure Diagram

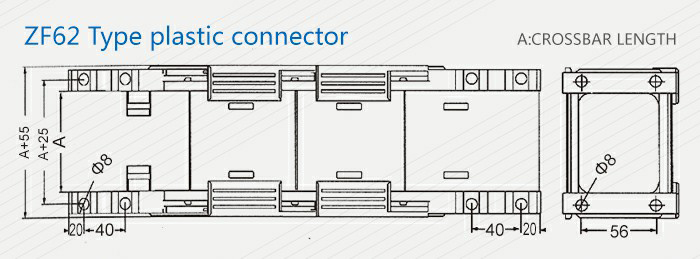

ZF62-Type-plastic-connector

Application

When running at high speed or high frequency, try to keep the wires separated from each other horizontally, and do not make them overlap each other. It is recommended to use separators when there are many cables, gas pipes, oil pipes, etc.

Installation of Cable Chains

Use a suitable flat-head screwdriver to vertically insert the opening holes at both ends of the cover plate, open the cover plate, put the cables and oil pipes into the drag chain according to the placement principle we provide, and then cover the cover plate. In addition, the fixed and movable ends of the wires are both Use a tension release device to fix it.
