China Factory for Flexible Cable Drag Chain - TL65 Steel Cnc Drag Chain Carrier – JINAO Detail:

The main body of the TL series steel tank chain is composed of the chain puller (high-quality steel plate with chrome plating), the support pulley (extruded aluminum alloy), the shaft pin (alloy steel) and other components, so that there is no relative movement between the cable or rubber tube and the drag chain. No distortion and deformation, the chain puller is chrome-plated, the appearance effect is novel and reasonable, the dexterity is high, the rigidity is good, and the deformation is not deformed. The wear resistance of the product is improved, the bending is more flexible, the resistance is smaller, and the noise is reduced, thereby ensuring that it will not deform or sag for a long time.

Cable Drag Chain – The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.

Model Table

Type TL65 TL95 TL125 TL180 TL225
Pitch 65 95 125 180 225
Bending radius(R) 75. 90. 115. 125. 145. 185 115. 145. 200. 250. 300 200. 250. 300. 350. 470. 500. 575. 700. 750 250. 300. 350. 450. 490. 600. 650 350. 450. 600. 750
Min/max Width 70-350 120-450 120-550 200-650 250-1000
Inner H 44 70 96 144 200
Length L Customized by the user
Max bore of support plate 35 55 75 110 140
Rectangular hole 26 45 72

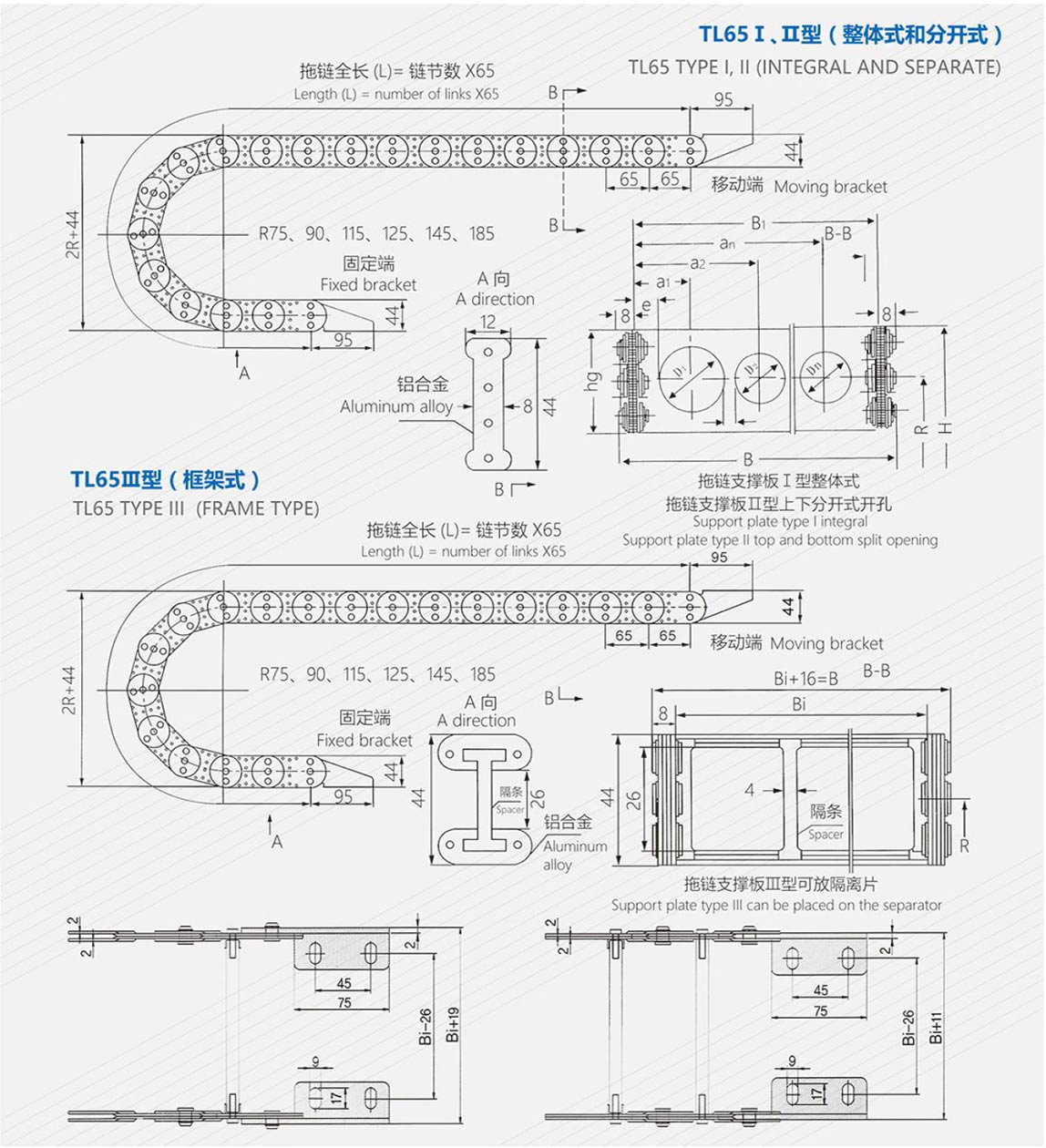

Structure Diagram

TL65

Application

Steel tank chains are generally used for traction and protection on cables, oil pipes, air pipes, water pipes and air pipes of machine tools and machinery. The use of steel towline originated in Germany, and later introduced and innovated the structure in China.

Now the steel towline has been widely used in the machine tool, which protects the cable and makes the machine tool look more beautiful as a whole.

Drag chains, rectangular metal hoses, protective sleeves, corrugated pipes, and plastic-coated metal hoses are all cable protection products.
