Factory Free sample Drag Chain Hose - ZQ80 Bridge type Load Bearing Cnc Cable Drag Chain – JINAO Detail:

Product name: ZQ80 bridge type drag chain

Material: Reinforced Nylon PA6, PA66

 Inner size: Height*width, 80*95,80*125,80*175,80*200,80*225,80*250,80*300mm

Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould for special requirements

Style: Bridge type,top and bottom lids can be opened

Color: Black with colorful button

Working temperature: -40-130 ℃

Features: wearable,elastic,fire proof,self-lubricating

How to identify good products:

Slide manually and see if it is smooth enough; Check the surface, see if it is flat and free of obvious burrs; Smell, it will smell pungent when using recycled material. The pure material will not smell bad; Direct factory or not, a direct factory can provide better product service and price

Model Table

Model

Inner H×W(A)

outer H*W

Style

Bending Radius

Pitch

Unsupported length

ZQ 80×95

80×95

118×141

Bridge type

Top and bottom lids can be opened

150. 200. 225. 250. 300. 350. 400

500. 600

110

3.8m

ZQ 80×125

80×125

118×171

ZQ 80×150

80×150

118×196

ZQ 80×175

80×175

118×221

ZQ 80×200

80×200

118×246

ZQ80x225

80×225

118×271

ZQ 80×250

80×250

118×296

ZQ80x300

80×300

118×346

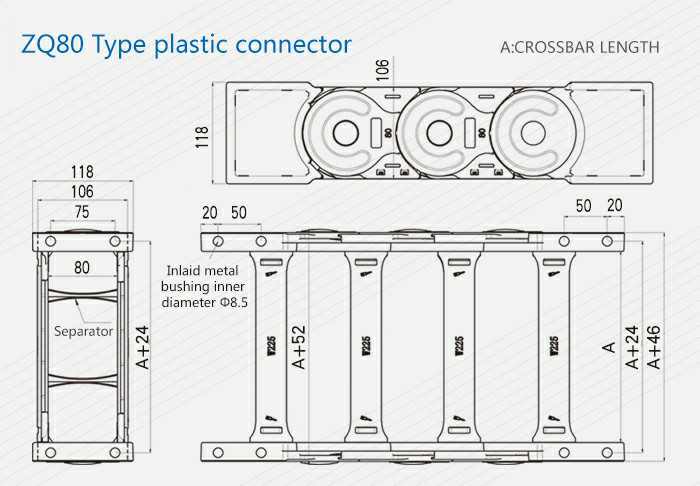

Structure Diagram

ZQ80-Type-plastic-connector

Application

Nylon Bridge Type Plastic Cable Drag Chain can be assembled and disassembled according to the needs of customers to facilitate the classification of the cables of the machine. The Nylon Bridge Type Plastic Cable Drag Chain uses Injection molding machine produced, the whole work flow for Nylon Bridge Type Plastic Cable Drag Chain can be controlled exactly by producing parameter.

Tow chain is divided into bridge tow chain, fully closed tow chain and semi-closed  tow chain according to the different use environment and use requirements.

Bridge type drag chain is used in reciprocating motion, which can play a role in traction and protection of built-in cables, oil pipes, air pipes, water pipes, etc.  Drag chain has been widely used in CNC machine tools, electronic equipment, glass machinery, injection molding machine manipulator, handling machinery, plastic machinery,  lifting equipment, woodworking machinery, automobile industry, industrial vehicles, metal processing machines, machine tools, casting machinery, port equipment and other industries.
