JY25 Anti-noise Cnc Cable Drag Chain

Short Description:

Cable and hose carriers are flexible structures made of links that guide and organize moving cable and hose. Carriers enclose the cable or hose and move with them as they travel around machinery or other equipment, protecting them from wear. Cable and hose carriers are modular, so sections may be added or removed as needed without specialized tools. They’re used in many settings, including material handling, construction, and general mechanical engineering.


Product Detail

Product Tags

Cable and hose carriers are flexible structures made of links that guide and organize moving cable and hose. Carriers enclose the cable or hose and move with them as they travel around machinery or other equipment, protecting them from wear. Cable and hose carriers are modular, so sections may be added or removed as needed without specialized tools. They're used in many settings, including material handling, construction, and general mechanical engineering.

Cable Drag Chain - The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.

When designing cable chains care needs be taken when selecting firstly the type of chain/carrier and secondly the type of cables to be fitted to the chain, followed by the layout of the cables in the chain. Most of the major chain manufactures have some documentation detailing how to choose and setup their chains to ensure the longest lifetime of both the chain and its contents. Following those guidelines to the letter would ensure lifetimes typically in the 10 of millions cycles range, but would also produce excessively wide chains that we could not easily fit into our applications.

Model Table

Model Inner H×W Outer   HX W Bending Radius Pitch Unsupported length Style
JY 25X38 25x38 36x59 55.75.100 22 1.5meters Bridge type, Top and bottom lids can be opened
JY 25X50 25x50 36x71
JY 25X57 25x57 36X78
JY 25X75 25x75 36X96
JY 25X100 25x100 36X121

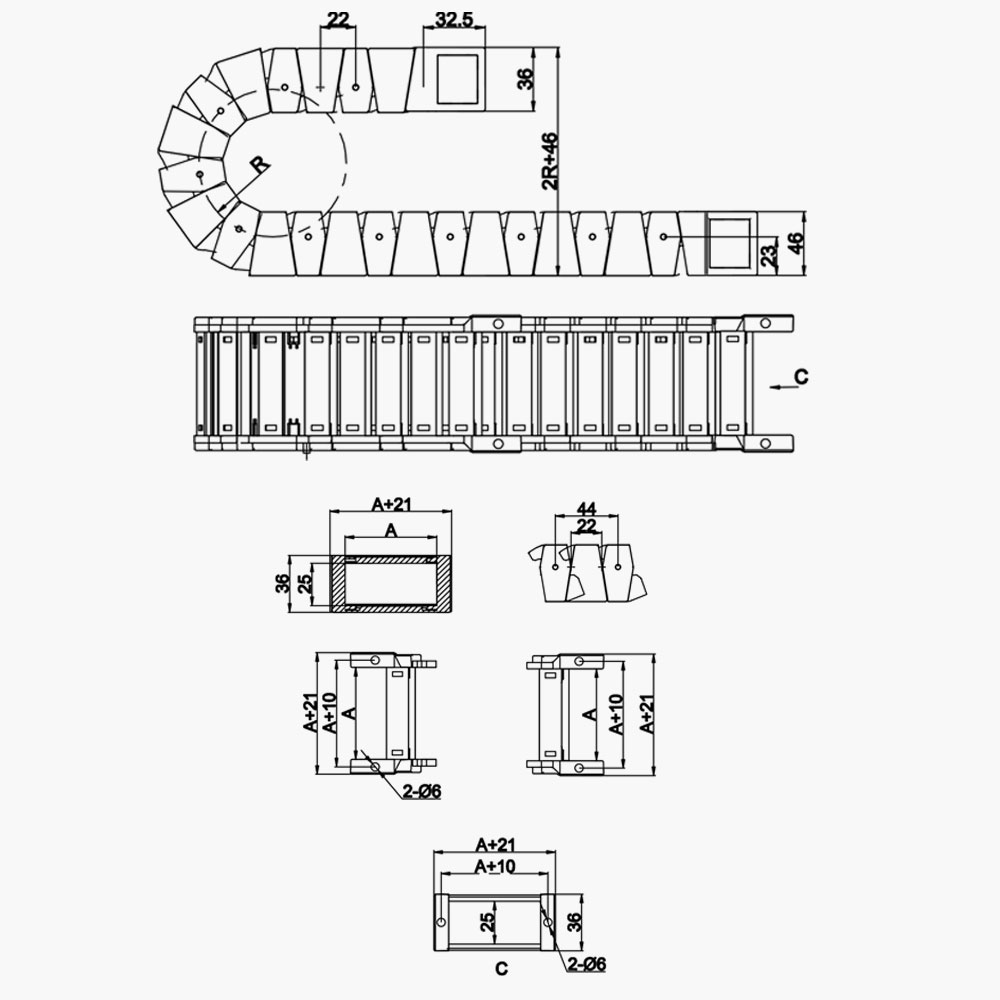

Structure Diagram

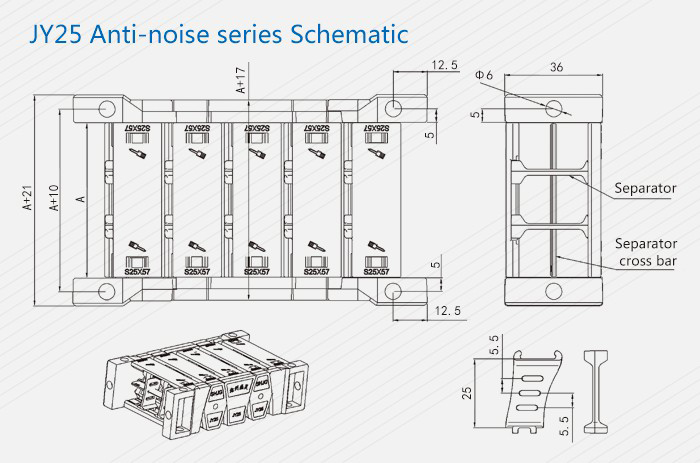

JY25-Anti-noise-series-Schematic

Application

Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
