JY35 Anti-noise Flexible Cable Tray Chain
Anti-noise-series Flexible cable tray is suitable for the CNC machine tools, machining centers, automated machinery and production lines and other kinds of machine tools, robots, transport machinery, measuring instruments, handling device and other liquid drive control a wire, cable, gas hose protection device, can take on machine tools, machinery and equipment moving parts run harmoniously, can play a safety protection and the ability to guide, can prolong protected wire, cable, liquid, gas hose service life and reduce consumption, can greatly improve the machine tools, machinery and equipment of wire, cable, liquid, gas hose to confirm the not orderly situation existing in distribution, make it tidy and rules is arranged together, can enhance the overall artistic effect of machine tools.
Cable and hose carriers are flexible structures made of links that guide and organize moving cable and hose. Carriers enclose the cable or hose and move with them as they travel around machinery or other equipment, protecting them from wear. Cable and hose carriers are modular, so sections may be added or removed as needed without specialized tools. They're used in many settings, including material handling, construction, and general mechanical engineering.
Model Table
| Model | Inner H×W | Outer HX W | Bending Radius | Pitch | Unsupported length | Style |
| JY 35X38 | 35x38 | 46x62 | 55.75.100 | 26 | 1.5meters | Bridge type, Top and bottom lids can be opened |
| JY 35X50 | 35x50 | 46x74 | ||||
| JY 35X57 | 35x57 | 46x81 | ||||
| JY 35X75 | 35x75 | 46x99 | ||||
| JY 35X100 | 35x100 | 46x124 |

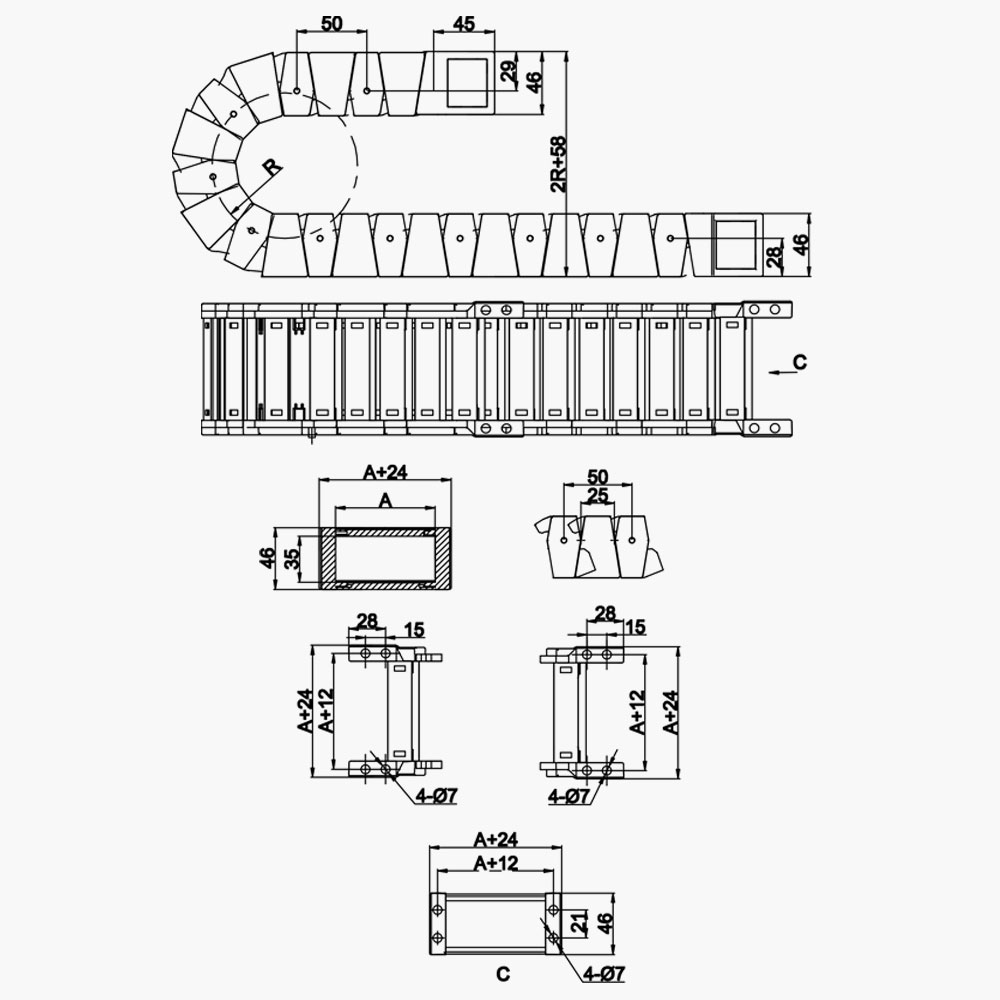

Structure Diagram
Application
Cable and hose carriers are flexible structures made of links that guide and organize moving cable and hose. Carriers enclose the cable or hose and move with them as they travel around machinery or other equipment, protecting them from wear. Cable and hose carriers are modular, so sections may be added or removed as needed without specialized tools. They're used in many settings, including material handling, construction, and general mechanical engineering.
