KF25 Full-closed type Economical Plastic Drag Chain

Plastic Nylon PA66 cable drag chains, full-closed type new design black color customized button color.

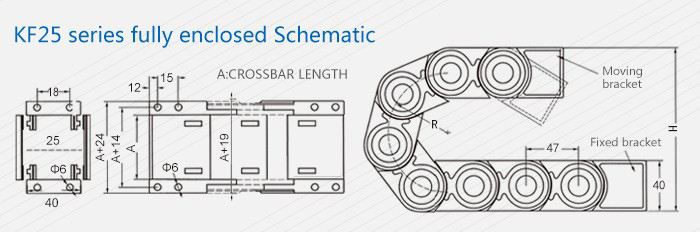

KF25 serious small size full-closed combined cable drag chains, we have 25*38, 25*50, 25*57, 25*75 , four type, and the bending radius we have R55/75/100/125/150. If your cables or tubes more large, you can choose other big size cable chains.

Product specifications are defined by height * inner width, the unit is MM, and the unit price refers to the inner length of 1 meter including the fixed joints at both ends.

The height of the drag chain after bending = bending radius * Z + outer height

For example: 25*38, bending radius R55

The total height of the drag chain after bending=55*2+40=1500mm

When designing cable chains care needs be taken when selecting firstly the type of chain/carrier and secondly the type of cables to be fitted to the chain, followed by the layout of the cables in the chain. Most of the major chain manufactures have some documentation detailing how to choose and setup their chains to ensure the longest lifetime of both the chain and its contents. Following those guidelines to the letter would ensure lifetimes typically in the 10 of millions cycles range, but would also produce excessively wide chains that we could not easily fit into our applications.
