KF55 Full-closed type Economical Cable Track Chain
1.The KF series cable carrier chain is a fully enclosed type. The chains can effectively prevent dust particles and debris generated in high temperature processes from entering the chain. This type of cable chain can be quickly opened along the inside or outside radius, and assembled quickly. The modular design makes it easy to cut or extend the chain length based on application needs.
2. The groove equipped with an separator is able to isolate different energy sources, making energy transportation safer and more efficient. We suggest users use an separator when a: there are different loads such as hydraulic pipes, water pipes, gas pipes and cables, or b: the loads are the same, but the quantity is large.
3.The limiting block has added to the length of the overhead line, which has significantly extended the lift of the cable carrier chain.
Model Table
| Model | Inner H×W (A) | Outer H*W | Style | Bending Radius | Pitch | Unsupported length |
| KF 55x60 | 55x60 | 74x91 | Totally enclosed Top and bottom lids can be opened | 125. 150. 175. 200. 250. 300 | 80 | 4m |
| KF55x75 | 55x75 | 74x106 | ||||
| KF55x100 | 55x100 | 74x131 | ||||
| KF55x125 | 55x125 | 74x156 | ||||
| KF55x150 | 55x150 | 74x181 |

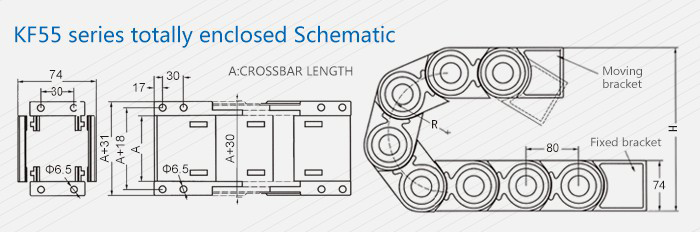

Structure Diagram
Application
Enclosed cable chain cable carriers for protection against dirt, chips & debris .
KF series fully enclosed cable carriers can be used to protect cables and hoses against hot metal debris, wood chips, dirt and dust generated in steel works, wood-processing plants, pulp factories, textile manufacturing, farming, coal-fired plants, and many other demanding environments. Components exposed to rough operating conditions significantly compromise the service life of cables and hoses resulting in expensive downtime. The need to ensure the reliability of your machine tools calls for the use of chip-resistant products.
The Drag chain has been widely used in CNC machine tools, electronic equipment, fire machinery, stone machinery, glass machinery, doors and windows machinery, injection machines, robots, overweight transportation equipment, automated warehouses and so on.
