The theme of TL series drag chain is composed of chain plate (high quality steel plate chrome plating), support plate (aluminum alloy), shaft pin (alloy steel) and other parts, so that there is no relative movement or distortion between cable or rubber tube and tow chain. Chain plate after chrome plating treatment effect of the novel appearance, reasonable structure, high strength, rigid ametabolic, easy installation, use and reliable, easy to tear open outfit, especially the product USES the high strength wear resistant materials, alloy steel as the shaft pin, improve the wear resistance strength, bend more flexible, less resistance, reduce the noise, which can guarantee long time use not deformation, not prolapse. Due to its exquisite appearance, this product can greatly enhance the overall artistic aesthetic effect of machine tools and equipment, and enhance the competitiveness of China’s machine tools and mechanical equipment in the international market.

Determine the bending radius of the support plate type and the towline according to the function requirements of the towline:

(1) When the tow chain needs to carry a large pipe and cable load, the high-strength support plate type I (integral type) should be selected.

(2) When the pipe joint size of the pipe is larger than the inner diameter of the support plate or needs to be disassembled, repaired, etc., the support type II can be selected, which is a separate type support plate.

(3) When there are many specifications for installing the cable, the support plate type III (frame type) can be selected.

Model Table

Type TL65 TL95 TL125 TL180 TL225
Pitch 65 95 125 180 225
Bending radius(R) 75. 90. 115. 125. 145. 185 115. 145. 200. 250. 300 200. 250. 300. 350. 470. 500. 575. 700. 750 250. 300. 350. 450. 490. 600. 650 350. 450. 600. 750
Min/max Width 70-350 120-450 120-550 200-650 250-1000
Inner H 44 70 96 144 200
Length L Customized by the user
Max bore of support plate 35 55 75 110 140
Rectangular hole 26 45 72

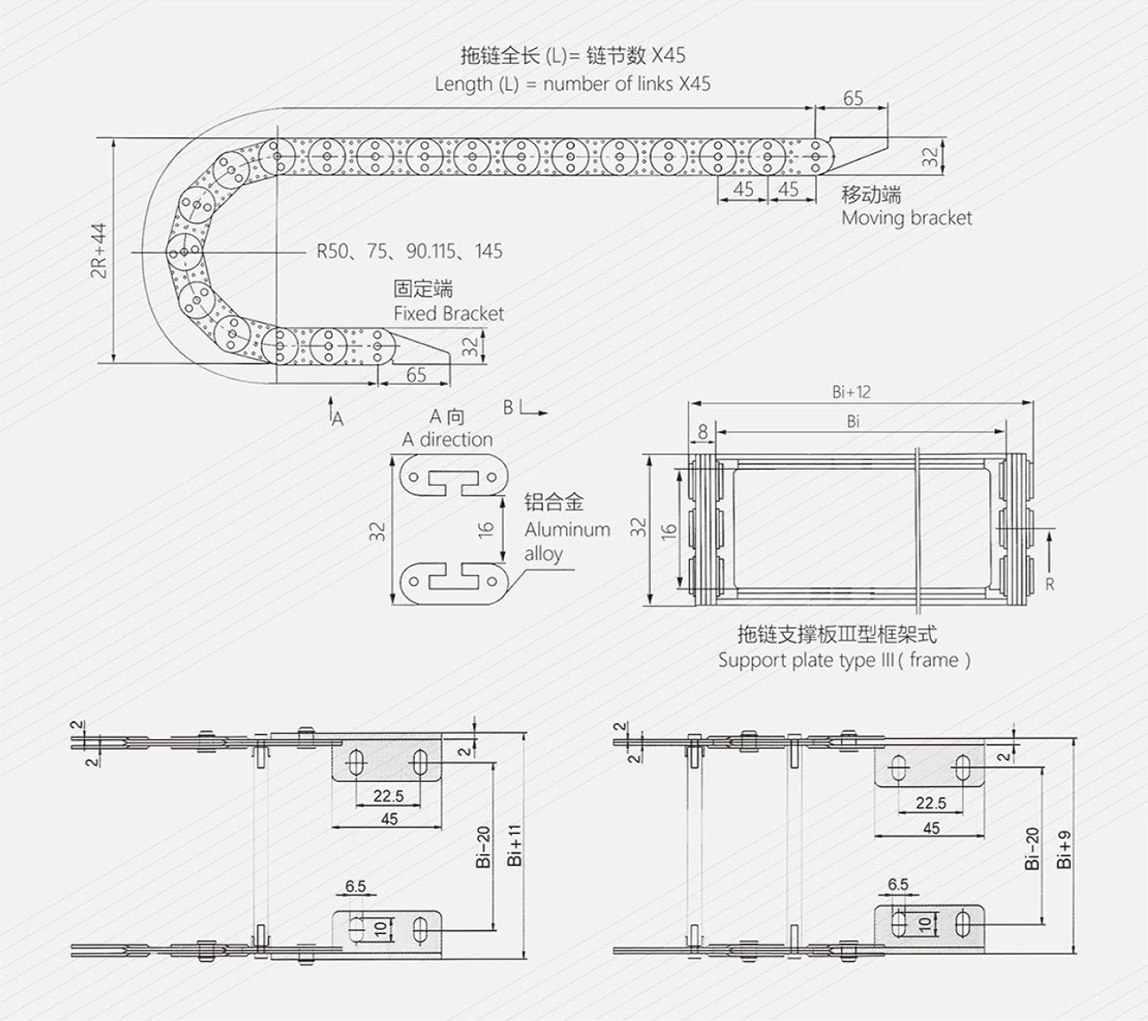

Structure Diagram

TL45

Application

Aluminum cable chain successfully operated in aggressive chemical environment.

At the request of the customer, we complete the cable carrier system the fixing and guide systems in the form of bearing trays, brackets, rollers, etc.

Our advantage is the development of projects and supply assembled drag chains with cables inside.
