TZ25 Light Style Cnc Cable Track
Cable Drag Chain - The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.
Salient features include less weight, low noise, non-conductive, easy handling, non-corrosive, easy of assembly due to snap fitting, maintenance free, available in custom lengths, separators to segregate cables/hoses, can be used for side by side in case number of cables is more, increases cable/hoses life, modular design simplifies cable/hose maintenance.
The Cable Drag Chain Is assemblies of single units that are snap fitted to form chain to specific length.
Advantage
High degree of protection against mechanical damage of different conductors,
High-speed movement of equipment and machinery,
The ability to use the whole length of the track as a work area.
Trucking current feeder is a necessary component of any industrial machinery, machine tool, crane, - cables, wires, hydraulic and pneumatic hoses, which are constantly exposed to mechanical and climatic influences.
Plastic and steel energy chains may be used in a temperature range from -40 ° C to + 130 ° C.
Model Table
| Model | Inner H×W | Outer HXW | Bending Radius | Pitch | Unsupported length | Style |

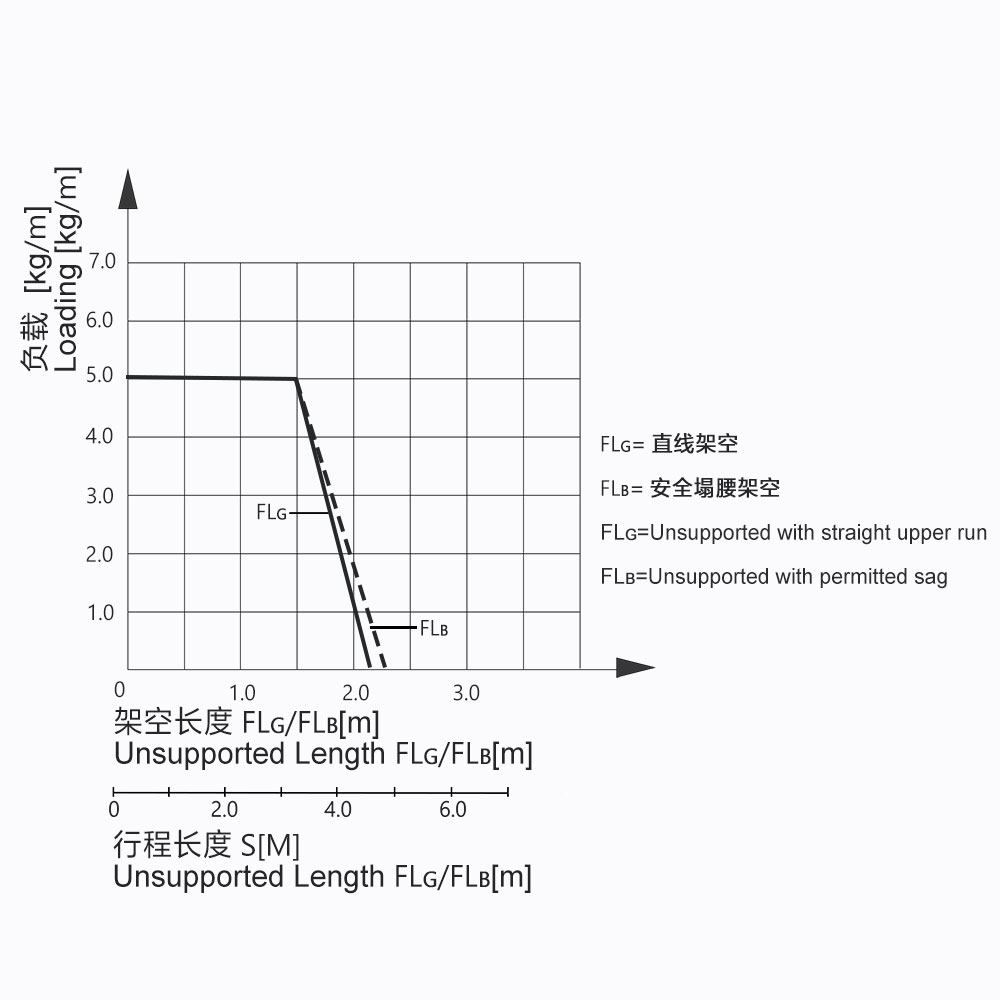

| TZ 25x38 | 25x38 | 35x54 | 55.75.100 | 45 | 1.8meters | Half-enclosed and bottom lids can be opened |
| TZ 25x50 | 25x50 | 35x66 | ||||
| TZ 25x57 | 25x57 | 35x73 | ||||
| TZ 25x75 | 25x75 | 35x91 | ||||
| TZ 25x103 | 25x103 | 35x119 |

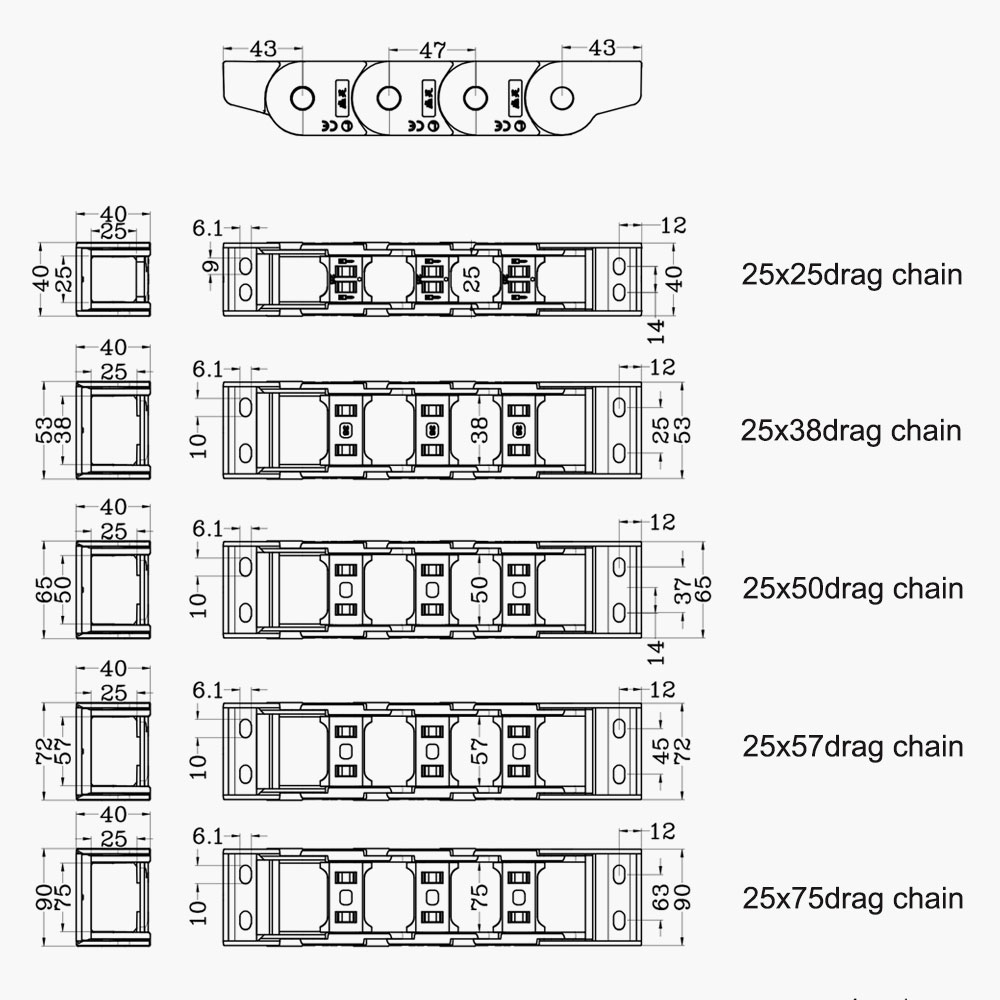

Structure Diagram
Application
Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
