ZF62D Double- row Full-closed type Load Bearing Plastic Energy Cable Chain

Short Description:

Product name: Double-row full closed type drag chain

Material: Reinforced nylon PA6 PA66

Inner(HxW): 62*100,62*150,62*250,62*300mm

Bending Radius: 150.175,200,250,300.400,500mm

Pitch: 100mm

Type: Totally enclosed,top and bottom lids can be opened


Product Detail

Product Tags

Features

1. Double -row full closed type load bearing drag chain,snap-on drag chain method with tight and firm structure.

2. all products can be assembled in a fully enclosed form according to the requirements of the user's actual application.

3. all products are available with a wide range of bending radii, as well as a choice of widths, quick change and other features.

4. used for a wide range of movements and strokes

5. Long service life under very high loads and in harsh environments;

6. Smooth operation in all environmental and climatic conditions;

7. Chemically resistant;

8. Abrasion-resistant, non-adhesive outer sheath.

Model Table

Model

Inner H×W(A)

outer H

Outer W

Style

Bending Radius

Pitch

Unsupported length

ZF 62x250D

62x250

100 2A+63 Totally enclosed
Top and bottom lids can be opened

150. 175. 200. 250. 300. 400. 500

100

3.8m

ZF 62x300D

62x300

ZF 62x100D

62x100

ZF 62x150D

62x150

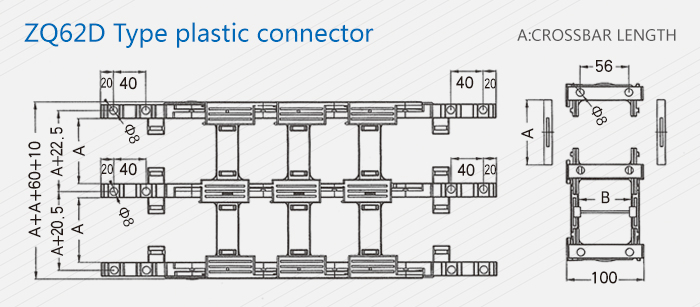

Structure Diagram

ZQ62D-Type-plastic-connector

Application

Double-row plastic drag chains are suitable for all kinds of machine tools such as CNC machine tools, machining centres, automated machines and production lines, robots, transport machines, measuring instruments, handling devices and other drive controls as a protection device for cables, hoses and hoses. The disorganised distribution of cables, hoses and hoses on machine tools is improved by the neat and regular arrangement of the hoses and hoses.

Double rows of fully enclosed drag chains to the machine tool cable and oil pipe, play an effective protection, cleaner, more rigorous structure, noiseless, formed large, fast movement, long life!High and low temperature stability, indoor and outdoor use.

Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
