ZF80D Double- row Full-closed type Load Bearing Cnc Plastic Cable Chain
The cable drag chain is a special cable with abrasion resistance, oil resistance and strong flexibility. It is suitable for occasions where the equipment unit needs to move back and forth. Put the cable in the cable drag chain to protect the cable from damage when it moves back with the drag chain.
Drag chain cables are suitable for equipment connection lines and drag chain occasions where equipment is frequently moved repeatedly. It can effectively prevent cables from entanglement, abrasion, pull-off and disorganization. They are mainly used in industrial electronic systems, automatic generation lines, storage equipment, robots, fire protection systems, Cranes, CNC machine tools and metallurgical industries, etc.
What Is Cable Drag Chain?
Cable drag chain is also called cable carrier, which is mainly designed to cover the cable wire on machine, it can also cover the water and oil hose. Why did those cable wires need to be covered? In the industry environment, cable wire can be in a mess, in long term fastly machine movement, every cable and related wire occurs uneven pull and winding, sometimes the manufacture process will produce small shaving, soil and other industrial pollutants, it is easily attached on the cable and resulting in corrosion damage.
Why Use Cable Drag Chain?
Install cable drag chains can reduce dust generation from cable friction, dust generation will damage the electronic parts on the precision machine, and dust generation will also decrease durability of machine but increase the repair charge. If the factory has higher demand like clean room, small dust can more effect to the yield, in order not to cause this kind of damage, installing cable drag chain is a good choice, and it can also reduct the cost.
Model Table
|
Model |
Inner H×W(A) |
Outer H |
Outer W |
Style |
Bending Radius |
Pitch |

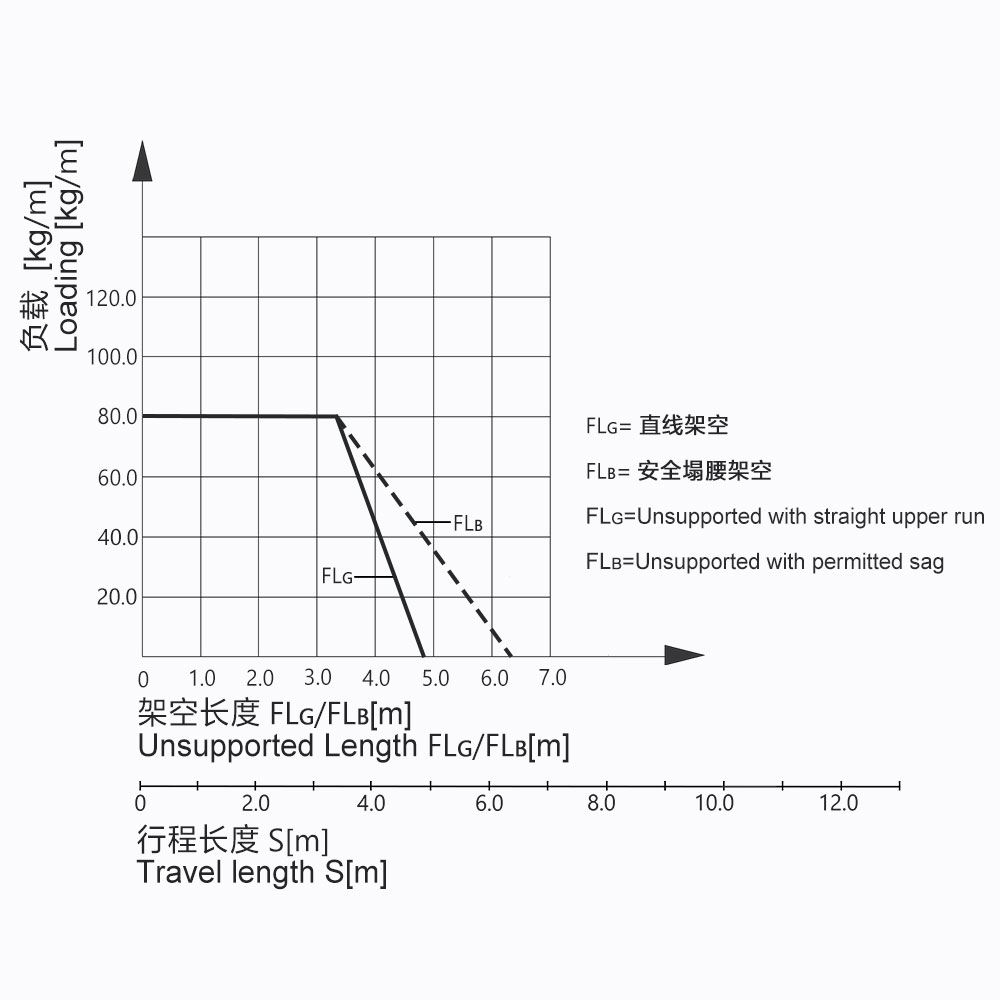

Unsupported length |
|
ZF 80x150D |
80x150 |
118 |
2A+77 |
Totally enclosed Top and bottom lids can be opened |
150. 200. 250. 300. 350. 400. 500. 600 | 100 | 3.8m |

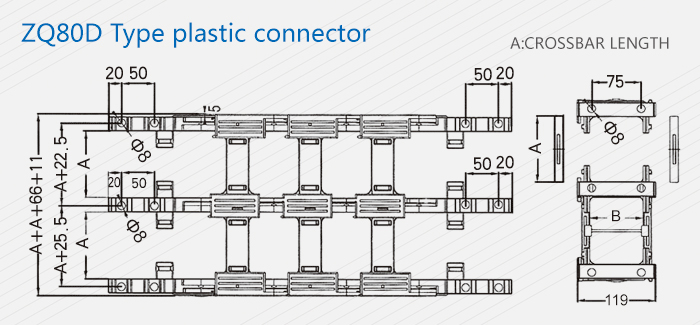

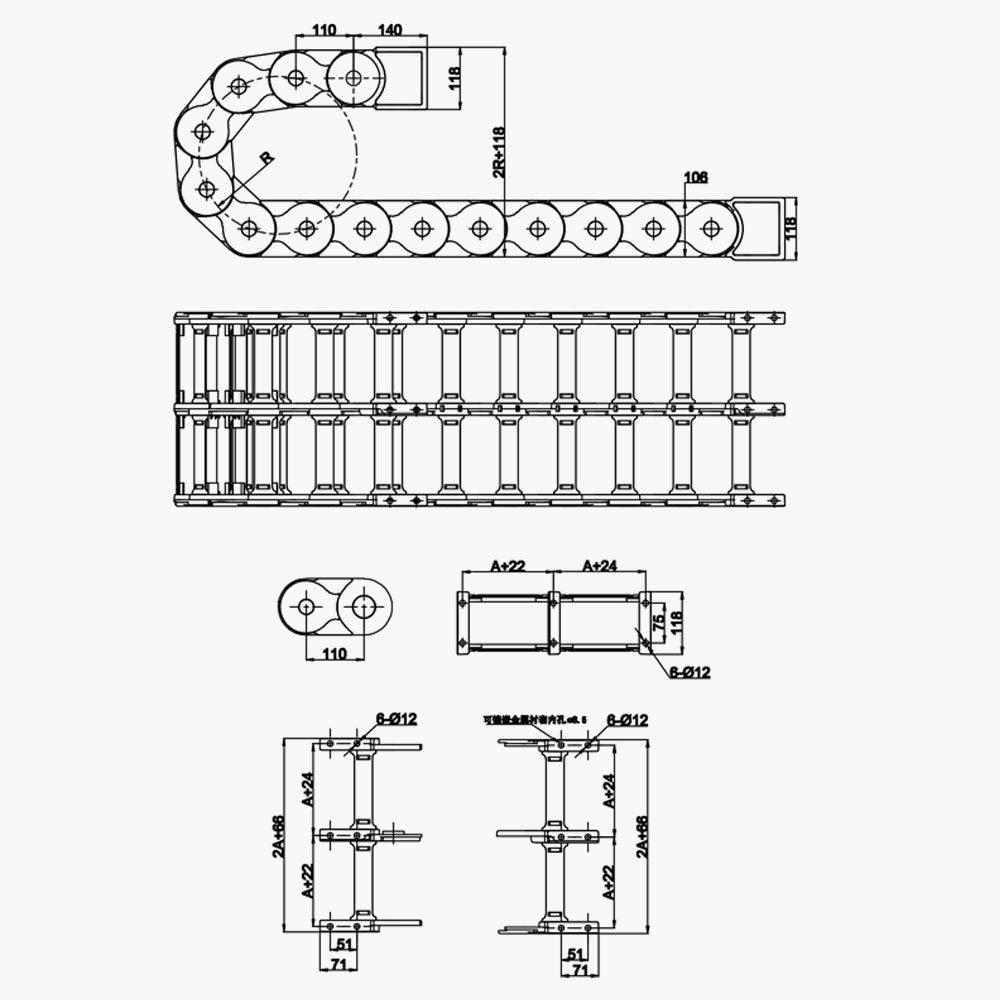

Structure Diagram
