ZQ35 Bridge type Load Bearing Nylon Drag Chain
Cable Drag Chain - The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.
When designing cable chains care needs be taken when selecting firstly the type of chain/carrier and secondly the type of cables to be fitted to the chain, followed by the layout of the cables in the chain. Most of the major chain manufactures have some documentation detailing how to choose and setup their chains to ensure the longest lifetime of both the chain and its contents. Following those guidelines to the letter would ensure lifetimes typically in the 10 of millions cycles range, but would also produce excessively wide chains that we could not easily fit into our applications.
Advantage
High degree of protection against mechanical damage of different conductors,
High-speed movement of equipment and machinery,
The ability to use the whole length of the track as a work area.
Trucking current feeder is a necessary component of any industrial machinery, machine tool, crane, - cables, wires, hydraulic and pneumatic hoses, which are constantly exposed to mechanical and climatic influences.
Plastic and steel energy chains may be used in a temperature range from -40 ° C to + 130 ° C.
Model Table
| Model | Inner H×W(A) | outer H*W | Style | Bending Radius | Pitch | Unsupported length |
| ZQ 35-2x50 | 35x50 | 58X80 | Bridge type Top and bottom lids can be opened | 75. 100. 125. 150. 175. 200. 250. 300 | 66 | 3.8m |
| ZQ 35-2x75 | 35x75 | 58X105 | ||||
| ZQ 35-2x100 | 35x100 | 58X130 | ||||
| ZQ 35-2x125 | 35x125 | 58X155 | ||||
| ZQ 35-2x150 | 35x150 | 58X180 | ||||
| ZQ 35-2x200 | 35x200 | 58X230 |

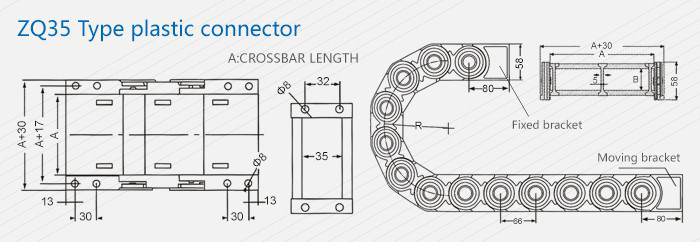

Structure Diagram
Application
Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
