ZQ45 Bridge type Load Bearing Plastic Drag Chain
Basic Parameters of Heavy-Duty Plastic Drag Chains
(1) Material: Reinforced nylon, with high pressure and tensile load, good toughness, high elasticity and wear resistance, flame retardant, stable performance at high and low temperature, and can be used outdoors. The amount of nylon content determines the strength and wear resistance of the drag chain, as well as the noise when running. The nylon content varies from 5% to 17%, but does not exceed 19%. Generally, the content is about 30%.
(2) Resistance: oil resistance, salt resistance, and certain acid and alkali resistance.
(3) Running speed and maximum speed: the maximum speed can reach 5 m/s, and the maximum acceleration can be 5 m/s (the specific speed and acceleration depend on the operating conditions).
(4) Operating life: under normal overhead use, the number of reciprocating movements can reach 5 million (the specific life depends on the operating conditions).
Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
Model Table
|
Model |
Inner H×W(A) |
outer H*W |
Style |
Bending Radius |
Pitch |
Unsupported length |
|
ZQ 45-3x50 |
45x50 |
68X80 |
Bridge type |
75. 100. |
66 |
3.8m |
|
ZQ 45-3x75 |
45x75 |
68X105 |
||||
|
ZQ 45-3x100 |
45x100 |
68X130 |
||||
|
ZQ 45-3x125 |
45x125 |
68X155 |
||||
|
ZQ 45-3x150 |
45x150 |
68X180 |
||||
|
ZQ 45-3x200 |
45x200 |
68X230 |

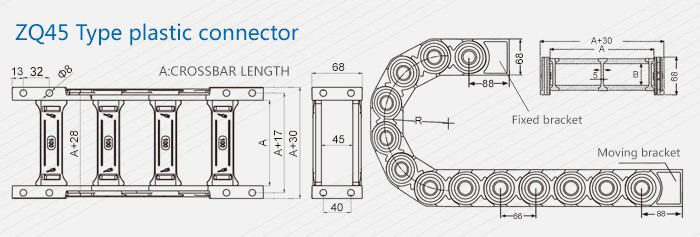

Structure Diagram
Application
The heavy-duty engineering plastic towline is better in material and thicker than ordinary plastic towline. It is suitable for places where there are many mechanical cables in the machine tool or where heavy objects need to be pressed on the towline. Long service life. The exquisite design of the middle yellow shaft makes the drag chain itself more beautiful. While providing use value to the machine tool, it also increases the overall aesthetics of the machine tool.
