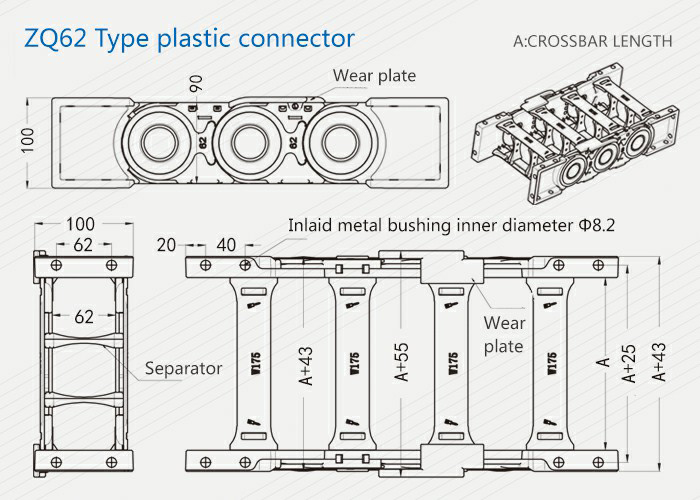

ZQ62 Bridge type Load Bearing Nylon Cable Chain

They can be used wherever the required energy input cables/hoses are light, the travel is small and the environmental conditions permit the use of plastics.

The chain links and separating plates for taking the cables/hoses, from a single unit in the Cable Drag Chains. The individual chain links can be connected by a snap connection Enabling them to be joined to form a chain of any required length. One of the advantages of this system is that the customer can make up any required length of chain so that stocks can be kept and it is not necessary to place an order for each requirement.

If the permissible unsupported length of the chain is exceeded, due to its elastic characteristics the upper section of the chain rests on the lower one. Due to the excellent anti-friction characteristics of the plastic material used, this does not impair the function of the chain when moving.

Salient features include less weight, low noise, non-conductive, easy handing, non-corrosive, easy of assembly due to snap fitting, maintenance free, available in custom lengths, separators to segregate cables/hoses, can be used for side by side in case number of cables is more, increases cable/hoses life, modular design simplifies cable/hose maintenance.

To specify a Moulded Plastic Cable Drag Chain, we require the following information:

1) Length of travel

2) Number and outside diameter of the cables/hoses to be installed

3) Required minimum bending radius of cables or hoses
