ZQ62D Double- row Bridge type Load Bearing Nylon Cable Chain
Installation for Cable Drag Chain
Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .put the drag chain for cables and oil pipes according to the instructions provided .put the cover back .note that the fixed end and the moving end of a cable should be fixed solidly
when used in a long sliding service ,it is recommended to use some supporting rollers or guide groove , it will be perfect then.
Model Table
|
Model |
Inner H×W(A) |
outer H |
Outer W |
Style |
Bending Radius |
Pitch |

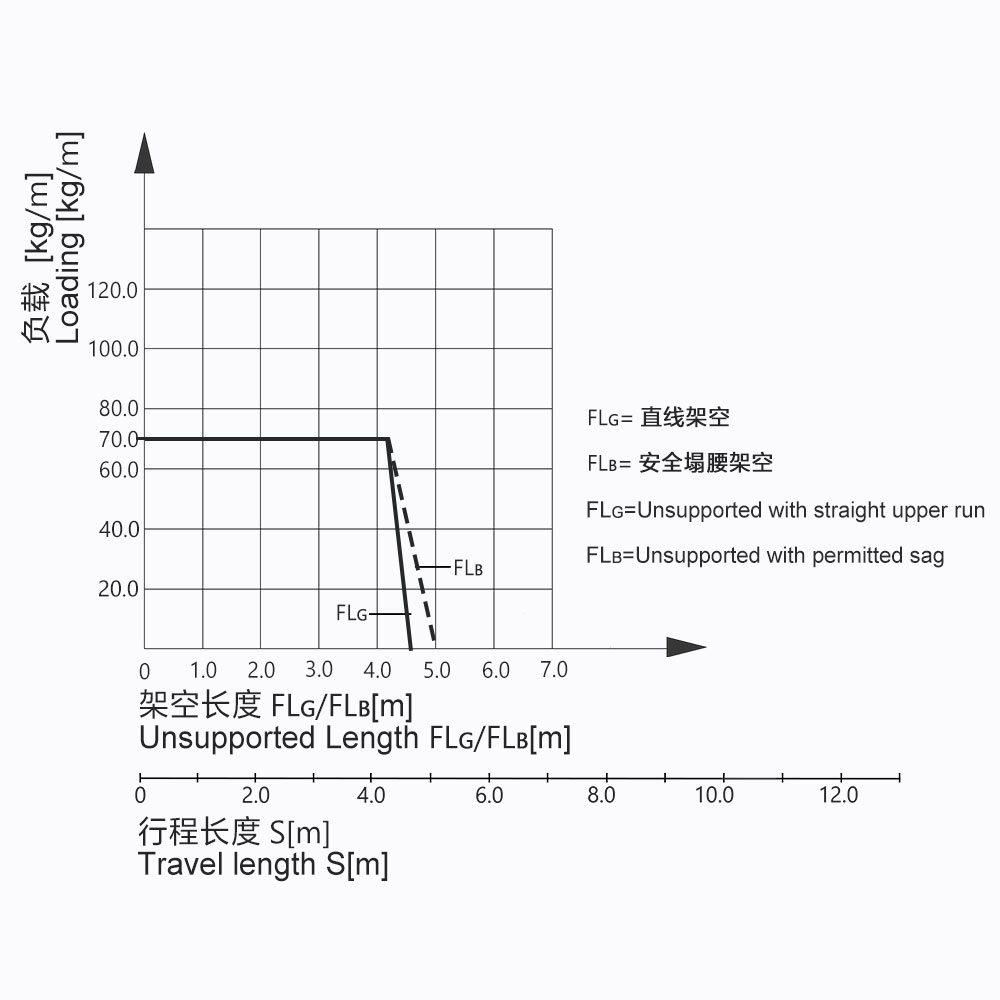

Unsupported length |
|
ZQ 62x95D |
62x95 |
100 | 2A+63 | Bridge type Top and bottom lids can be opened Totally enclosed Top and bottom lids can be opened |
150. 175.200.250.300.400.500 | 100 | 3.8m |
|
ZQ 62x125D |
62x125 |
||||||
|
ZQ 62x150D |
62x150 |
||||||
|
ZQ 62x175D |
62x175 |
||||||
|
ZQ 62x200D |
62x200 |
||||||
|
ZQ 62x225D |
62x223 |

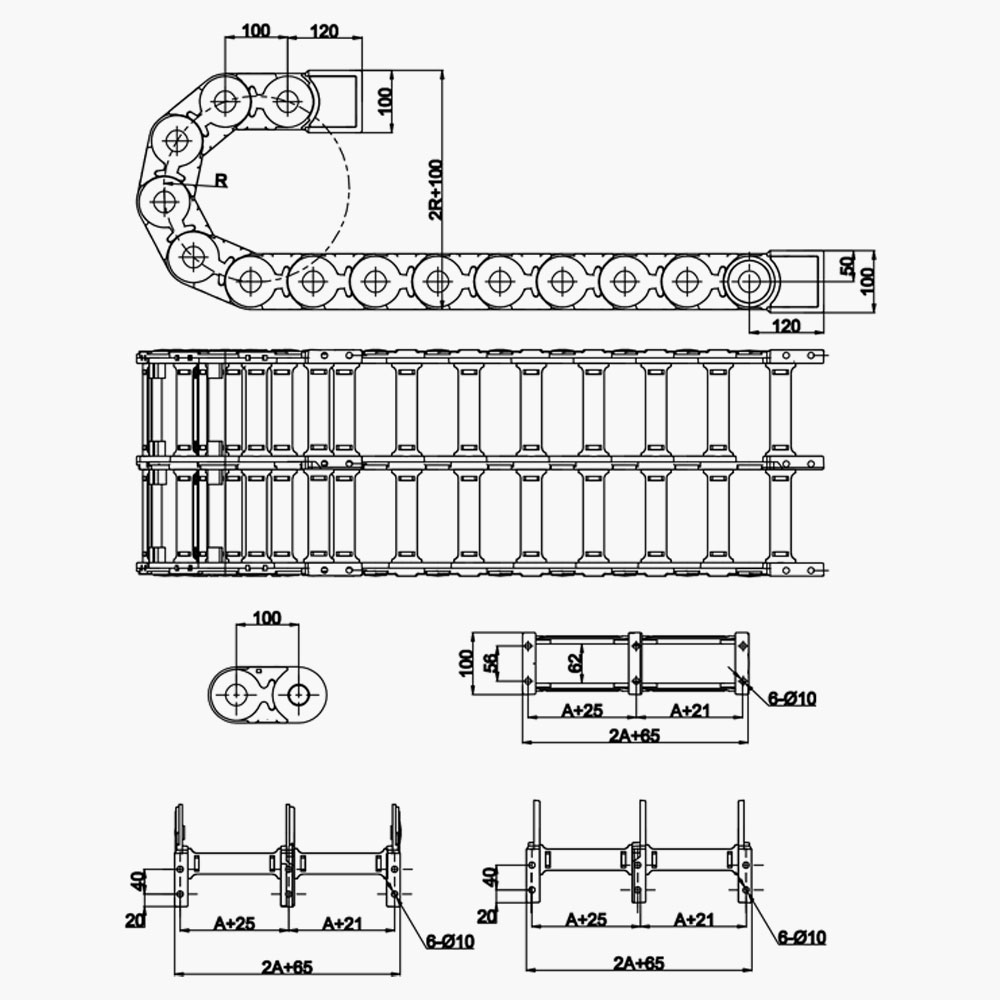

Structure Diagram
Application
1. The product can be used for such locations where reciprocating, of motions are required so that internally internally installed cables,oil pipes,gas tubes and water tubes can be dragged and protected.
2. Each joint of the chain can be opened up so as to facilitate repairs and maintenance.It gives low noises and is of anti-wearing while running.It can also be operated under high speed.
3. The drag chains have already extensively used in digital-controlled machine tools,electronic equipment,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting ,and transport equipment and automatic warehouses,etc.
